The type of 20 40 combo chassis for sale is very convenient in loading and unloading operations and has low transportation costs. The gooseneck chassis uses high-quality parts and components, and has good adaptability and stability in structure, and can cope with Guam road conditions and high-intensity usage requirements.
Container chassis for sale has been carefully designed in terms of appearance, structural stability and so on, fully considering various practical needs during transportation. The gooseneck chassis is a transportation equipment with both performance and practicality.
20 40 Combo Gooseneck Container Chassis for Sale in Guam
20 40 Combo Gooseneck Container Chassis for Sale in Guam
Overall Dimension: 12500mm*2500mm*1500mm
Max Load Capacity: 60 ton
Axles: 2 axles, 13ton
Tire: 8 units, 11R22.5
Suspension: mechanical suspension

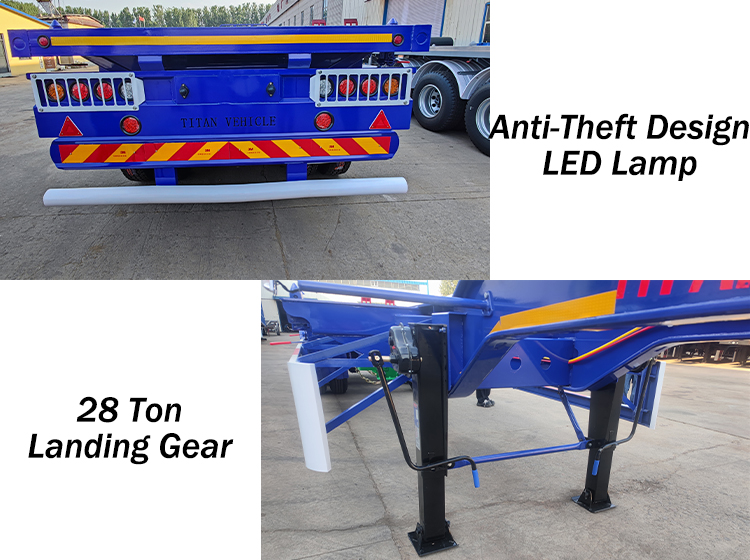

Landing Gear: 28 ton

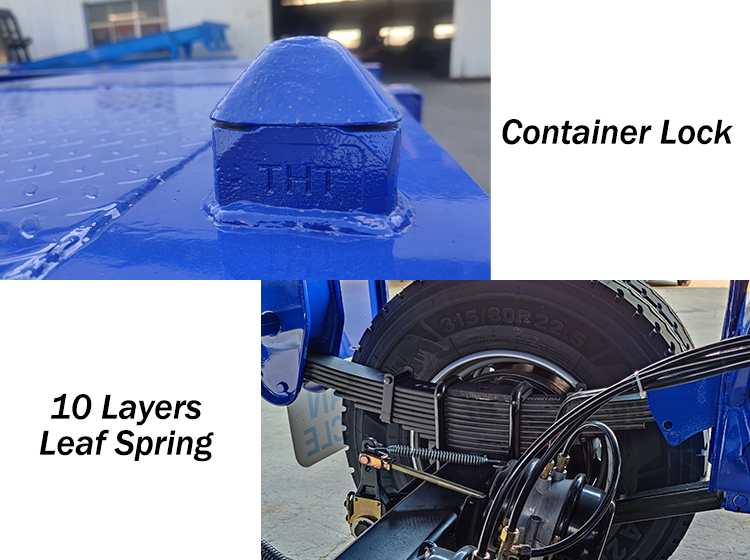

Leaf Spring: 10 layers
Bumper: thickened bumper
Lamp: LED Lamp with anti-theft design
In the design of 20 40 combo chassis for sale transportation, the visibility of the appearance is fully considered. The container chassis for sale adopts eye-catching color matching, which is easier to be recognized during driving, thereby improving safety. The body surface is treated with advanced powder spraying and baking painting.
The method not only presents a bright visual effect, but also has excellent adhesion. Compared with traditional painting methods, powder spraying is more wear-resistant and durable, and is not easy to fall off within five years. In addition, the container chassis color also supports customized selection, which can meet the aesthetic and personalized needs of Guam customers.
During transportation, the suspension equipped with the 20 40 combo chassis also plays a vital role. Especially when the road conditions are poor and potholes appear, the leaf spring structure in the mechanical suspension can effectively absorb the impact and reduce the impact of vibration, thereby better protecting the goods from damage.
The gooseneck chassis suspension is equipped with a 70mm diameter center balance pin, and the structure is reinforced which can maintain normal operation even in high temperature environments.
In response to customers' actual needs for tool storage during transportation, the container chassis for sale design is also specially equipped with a tool box. The tool box has sufficient capacity to provide a fixed and reliable storage space for maintenance equipment or unloading tools.
To improve the durability of use, the bottom structure of the tool box has been reinforced to cope with long-term use under complex working conditions. At the same time, in order to ensure the safety of the items, the 20 40 combo chassis for sale tool box is equipped with a specially designed lock to effectively prevent the items from being lost or stolen during transportation, improving the overall safety and convenience of use.
The open structure of gooseneck chassis shows obvious advantages when shipping large quantities of goods. The container chassis supports flexible loading of 20 foot or 40 foot containers. 20 40 combo chassis has 12 container locks installed on the 40-foot-long floor plate. The locks are easy to operate.
After confirming the position of the container before loading, Guam customers only need to align the locks with the box to fix it, which can effectively improve the loading efficiency and save operation time.
Compared with other similar products on the market, the 20 40 combo chassis for sale also performs well in the braking system. The 16-ton brake pads is equipped with can significantly improve the braking reaction speed and shorten the braking distance by more than 5 meters.
In addition, the air pipe part is made of high-pressure rubber material, which can extend the service life to more than 10 years. The container chassis for sale internal wires use durable cables to ensure a service life of more than 5 years. The designs not only take into account the cost of use, but also enhance the safety of the whole container chassis, bringing reliable transportation guarantees to Guam customers.
Transportation of the 20 40 combo chassis for sale can be conducted using a container, and is also available for container chassis to shipping via RORO (Roll-on/Roll-off) vessels. Before the gooseneck chassis is shipped, TITAN takes protective measures by applying a layer of spray wax and covering the entire 20 40 combo chassis with waterproof tarpaulins. The precautions help safeguard the container chassis for sale from potential damage caused by exposure to seawater and wind during the shipping process.
