The 3 axle low bed trailer is able to support heavy-loaded large accessories by relying on continuously improved design and high-quality accessories. It can provide a reliable and secure transportation experience and meet the transportation needs of Guam customers.
The low bed trailers are specially designed for long-distance transportation of large equipment. The 3 axle low bed trailer can be used to transport heavy equipment in industries such as industry, agriculture, or construction. The low bed trailer for sale frame is designed with an ultra-low center of gravity to ensure maximum loading stability, and the thickness of the floor plate can support the weight of heavy equipment.
3 Axle Low Bed Trailer Price for Sale in Guam Agana
3 Axle Low Bed Trailer Price for Sale in Guam Agana
Model: 3 Axle Low Bed Trailer
Overall Dimension: 16000mm*3000mm*3400mm
Load Capacity: 80 ton
Floor Plate: 5mm thick pattern floor plate
Side beam: 300mm high, 8mm thick
Axles: 3 axles, 13ton, TITAN brand
Tire: 12 units, 12R22.5
Ramp: extendable spring ramp
Landing Gear: 28 Ton
Suspension: mechanical suspension
Lamp: LED Lamp
The main beam of the low bed trailer is made of Q460 steel, which has higher strength and load bearing capacity than ordinary steel. Choosing high-strength steel can ensure the best performance in heavy-load transportation scenarios. The double plate reinforced gooseneck of the low bed trailer for sale minimizes deformation of the low bed trailer under extreme load conditions. The gooseneck of this 3 axle low bed trailer continues the same width of the floor plate, which increases the loading area on the 3 axle low bed trailer surface.

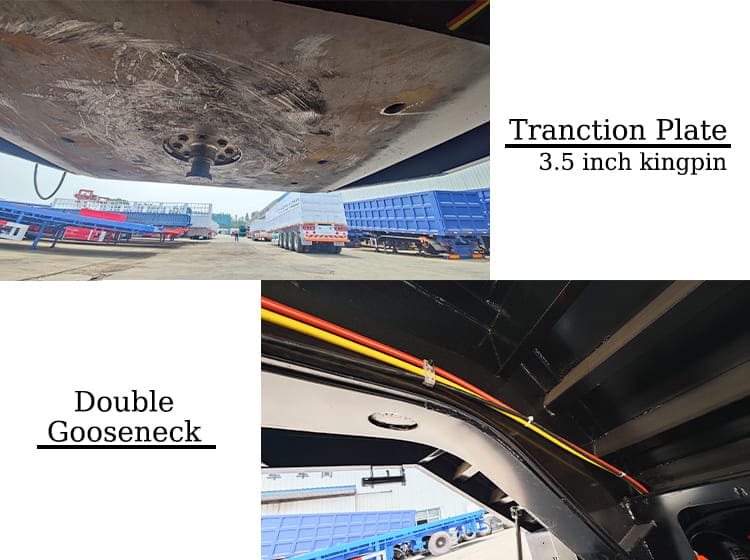

The traction plate of the TITAN low bed trailer price is made of a whole piece of steel plate, which ensures the integrity of the structure, avoids splitting under heavy load, and ensures high flexibility when connected to the truck head. The low bed trailer price traction plate has a thickness of 12mm and can withstand the impact of bumpy roads and the impact of frequent braking. In bad weather or complex roads, the traction plate of the TITAN low bed trailer for sale can ensure good traction and impact resistance.

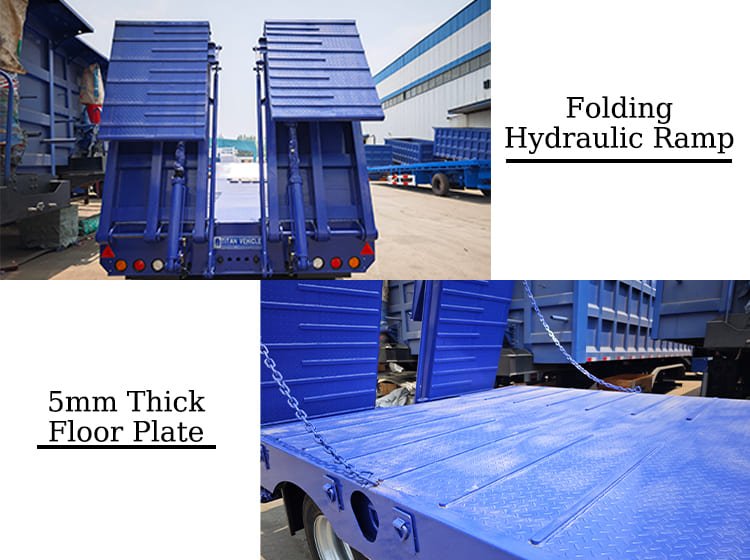

The low bed trailer for sale is equipped with a spring ramp, which can automatically adjust through the advantages of high elasticity of the ramp, balance the inclination angle of the low bed trailer for sale and the ground, and ensure seamless contact between the two. The 16mm thickened spring design can ensure that the ramp can excellently support the back and forth of heavy equipment, and perfectly digest the instantaneous pressure of heavy load on the 3 axle low bed trailer structure. The 3 axle low bed trailer ramp has a simple structural design and can be quickly used. Only one person can complete the up and down operation of the ramp.

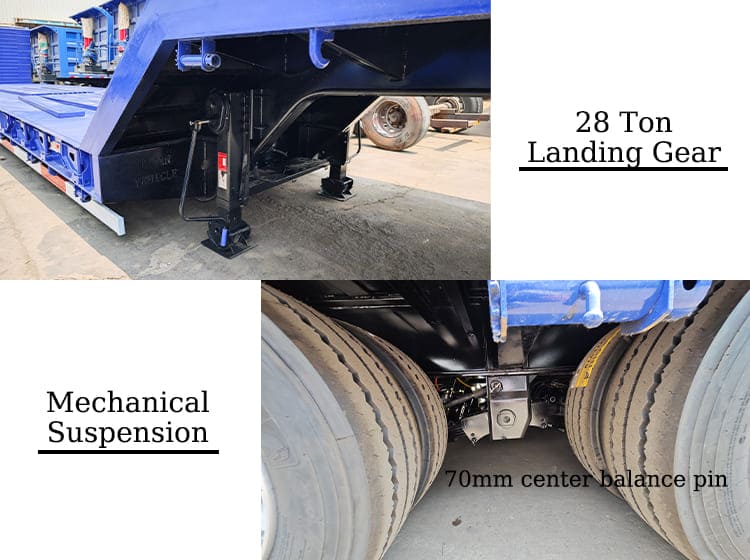

The wide base design of the low bed trailer price landing gear increases the contact area with the ground, which can adapt to a variety of loading and unloading scenarios. At the same time, the design can also greatly disperse the ground pressure to avoid the landing gear force obstruction due to soft or rugged ground. The landing gear equipped with the low bed trailer for sale has a lifting capacity of 28 tons and can weigh about 80 tons statically, which can greatly meet the extreme load requirements of Guam customers.
For the braking system, the low bed trailer is equipped with a 16 ton brake pad, which can effectively improve the braking response of the low bed trailer for sale and shorten the braking distance by at least 5m. The air pipe of the 3 axle low bed trailer braking system uses a high pressure rubber air pipe, which can extend the service life by more than 10 years. At the same time, the wires are made of durable cables with a guaranteed service life of more than 5 years. These designs enable Guam customers to achieve a balance between cost and safety.
Transportation can be shipped by a container. The 3 axle low bed trailer can also shipped in RORO ship. TITAN low bed trailer price is worth mentioning that other companies do not have this similar services. Before delivery, TITAN spray wax and cover all low bed trailer with waterproof raincoats, which can effectively prevent low bed trailer from being corroded by seawater and sea winds during shipping.
