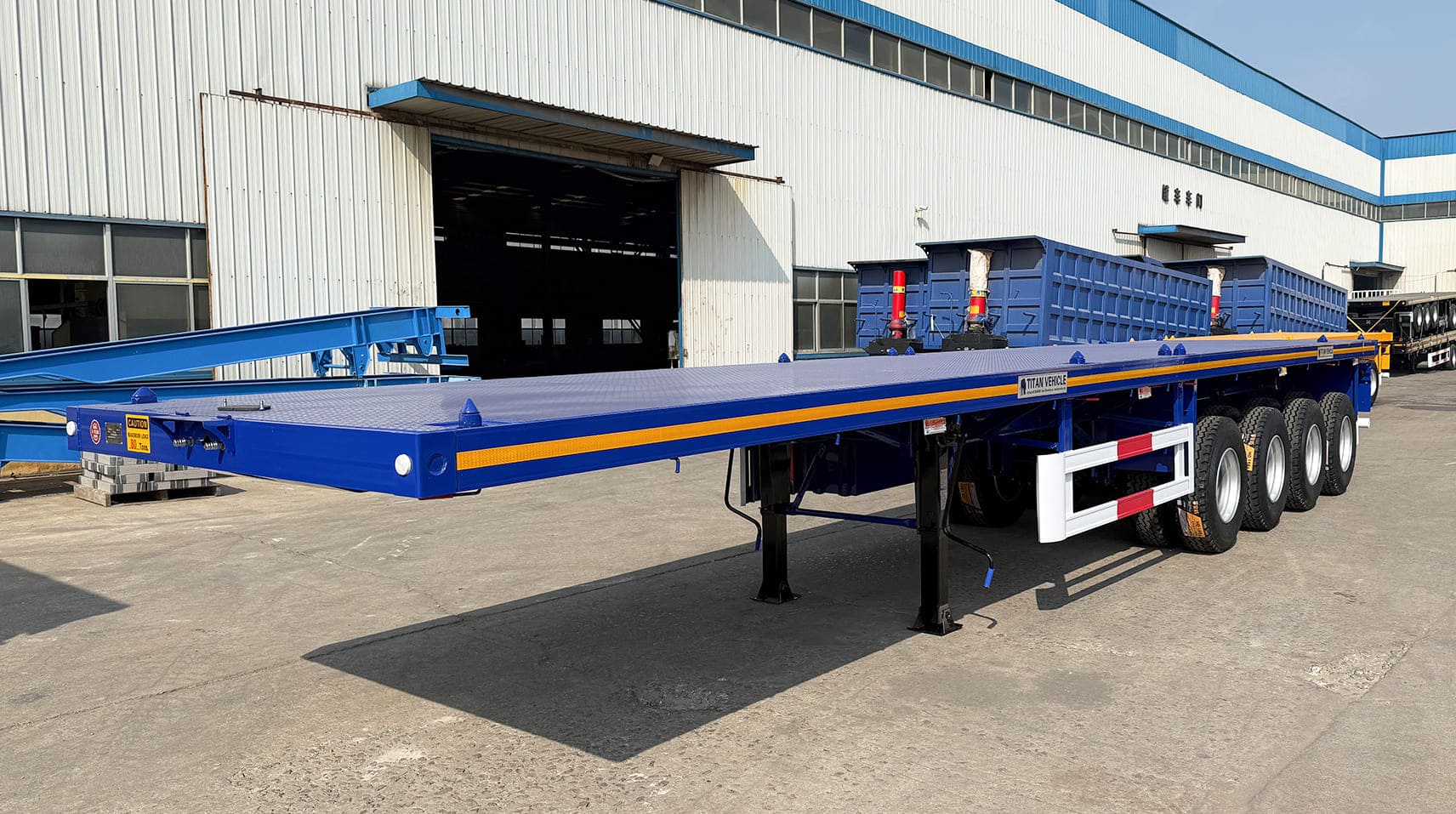

The 45 ft flat trailers can be equipped with standardized containers for transportation, and can also hold a large amount of bulk cargo. With the diverse transportation methods and excellent carrying capacity, 45 ft flat trailers have become the first choice of customers.
The heavy duty flatbed trailer can carry 20ft and 40ft standard containers, and can adapt to the seamless connection between sea and road transportation. The 4 axle flatbed trailer can greatly enhance the excellent support and adaptability of the 45 ft flat trailers for sale. When loaded, the 45 ft flat trailers for sale can distribute the weight to the frame to avoid extreme pressure at one place, which may cause deformation and damage to the heavy duty flatbed trailer.
45 Ft Flat Trailers for Sale | Heavy Duty 4 Axle Flatbed Trailer in Guam
45 Ft Flat Trailers for Sale | Heavy Duty 4 Axle Flatbed Trailer in Guam
Dimension: 13000mm*2500mm*1550mm
Loading capacity: 80 ton
Side Beam: 160mm high
Axles: 4 axles, TITAN brand
Tire: 12R22.5, 16 units
Leaf Spring: 10 layers
Suspension: mechanical suspension
Landing Gear: 28 ton

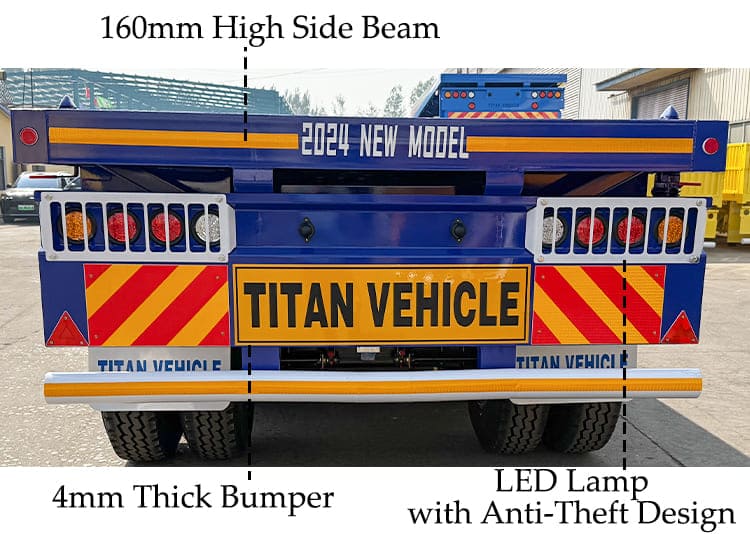

Bumper: 4mm thickened bumper
Lamp: LED lamp with anti-theft design

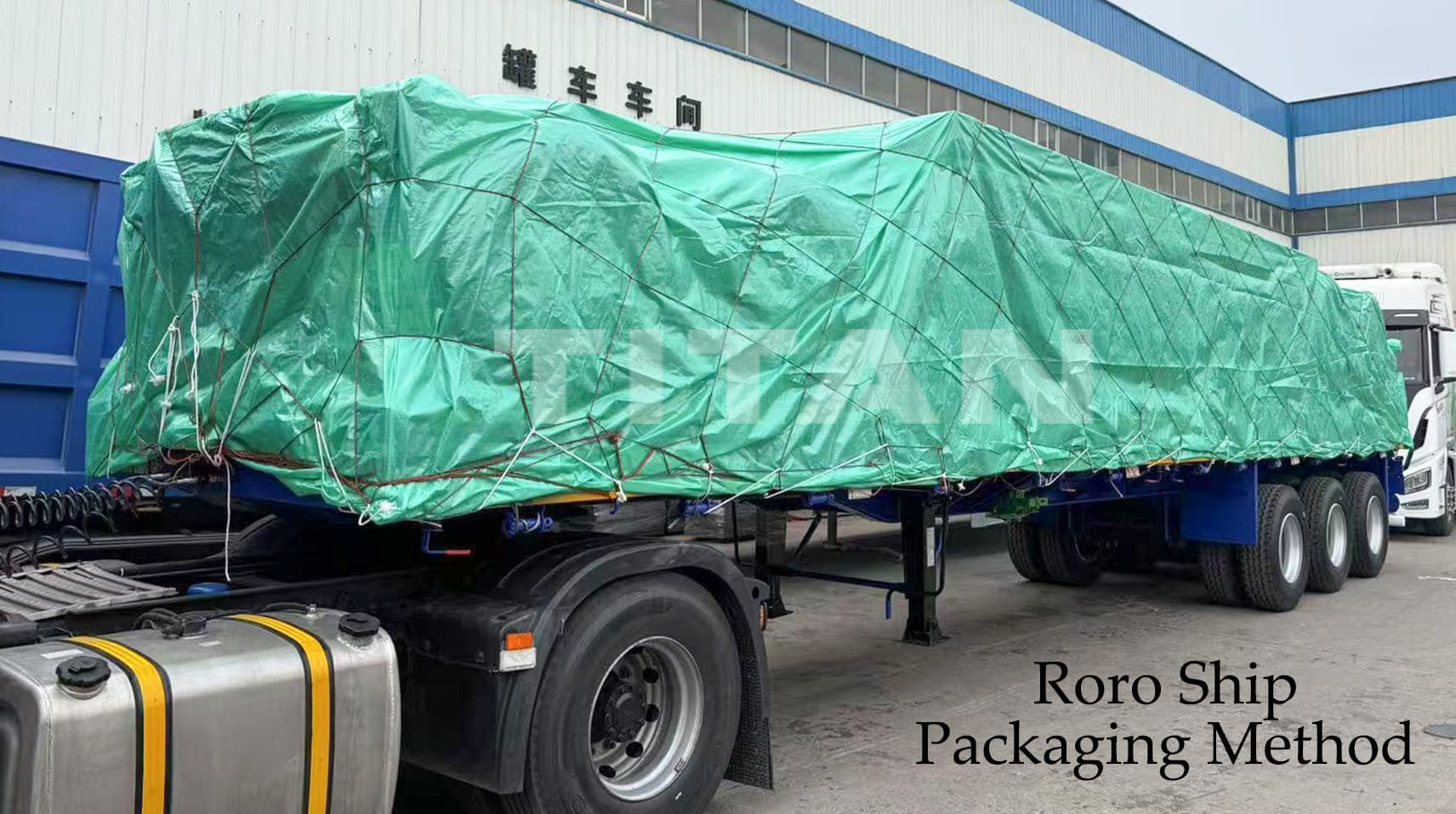

TITAN 45 ft flat trailers for sale will be waterproofed before delivery to prevent rust. The 4 axle flatbed trailers will be waxed and covered with waterproof cloth before packing, which can effectively prevent the heavy duty flatbed trailers from being corroded by humid sea water and sea breeze during sea transportation. Customers can choose container transportation or ro-ro transportation.
The heavy duty flatbed trailer main beam is made of Q355 low-carbon high-strength alloy steel, and the overall strength is improved through the material structure. The automatic submerged arc welding process is used to ensure that all components are firmly connected and the integrity of the main beam structure is maintained.

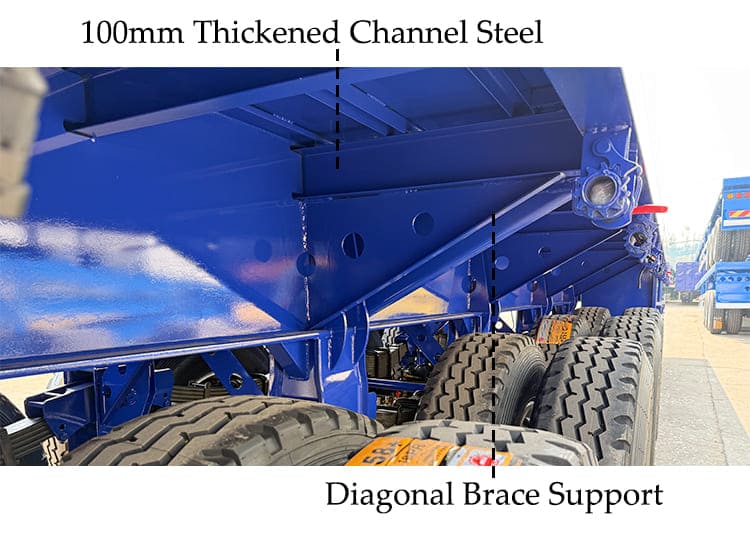

Multi layer reinforced steel plate design is added to the key connection parts, especially the gooseneck part adopts a double reinforcement scheme. This structural design of the 45 ft flat trailers for sale enables the frame to effectively reduce deformation when carrying heavy cargo, significantly improves the load-bearing capacity and durability, and ensures the reliability of transportation operations.
The open design of the 4 axle flatbed trailer floor can greatly improve the loading and unloading efficiency, and this design can also provide more transportation possibilities for Guam customers. The floor plate is the part that is in the closest contact with the bulk cargo, so 45 ft flat trailers for sale is necessary to consider the problems that may arise during transportation.
Choosing a patterned plate that can greatly enhance friction and has an aesthetic effect is the choice of TITAN heavy duty flatbed trailers. The 3mm thick high-strength alloy steel patterned floor plate has strong support and a certain degree of corrosion resistance, which can maintain the beauty of the 4 axle flatbed trailer even in humid coastal areas.

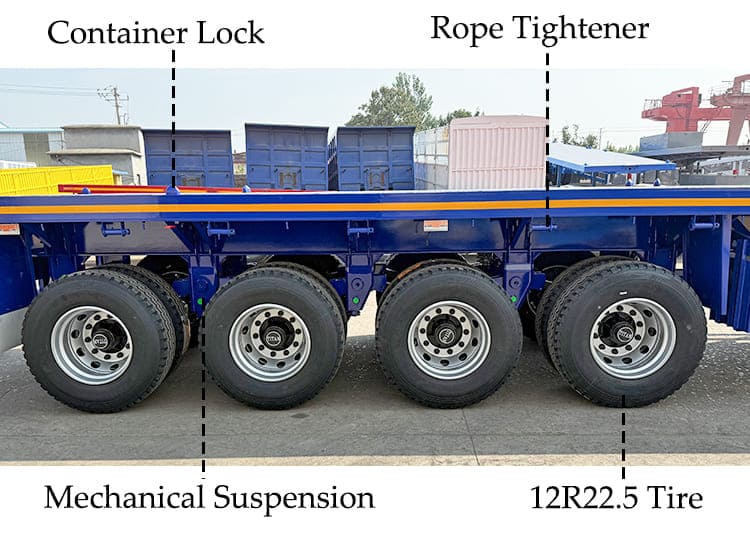

The 45 ft flat trailers for sale is equipped with multiple rope tighteners, which are distributed along the side of the heavy duty flatbed trailer body to form a full-coverage fixing mode. The rope tighteners work together with the 4 axle flatbed trailer floor plate to implement three dimensional constraints on bulk cargo through adjustable straps.
The rope tighteners adopt a simplified locking design, which can quickly complete the conversion between tensioning and loosening. When encountering sharp turns or sudden braking, the 4 axle flatbed trailer rope tighteners can effectively suppress the displacement of cargo.
The mechanical distribution design allows the fixed load to be evenly transferred to the main structure of the 45 ft flat trailers for sale body, forming an all-round protection mechanism for cargo transportation.
The 16 ton large-tonnage brake pads and the ABS system form a double braking guarantee to the heavy duty flatbed trailers. In emergency braking, the two devices not only keep the tires rotating effectively but also optimize the distribution of braking force. The high-strength rubber brake air pipe configured in the breaking system has excellent pressure resistance and weather resistance.
The 45 ft flat trailers for sale combined braking solution significantly improves the braking performance under different road conditions, especially in mountainous terrain and complex climatic conditions. TITAN 4 axle flatbed trailer can not only ensure the braking response sensitivity, but also effectively control equipment loss, forming a sustainable transportation safety guarantee system in Guam.
