Flatbed trailer for sale is one of the company's best-selling products and has the largest export volume in China. 40 ft flatbed trailer adopts the most advanced and sturdy technology and materials and focuses on creating maintenance-free and durable dump trucks for customers.
Guam provide personalized customization services for flatbed tralier for sale, aiming to create a flatbed trailer that best meets your actual needs, is efficient and durable. Including size(like 40 ft flatbed trailer), material, surface treatment, functional configuration, and brand identity, etc.

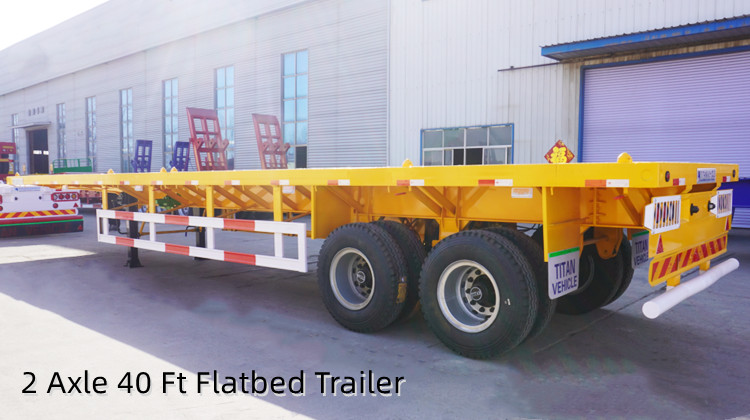

2 Axle 40 Ft Flatbed Trailer for Sale in Guam Apra
2 Axle 40 Ft Flatbed Trailer for Sale in Guam Apra
2 Axle 40 Ft Flatbed Trailer for Sale in Guam Apra

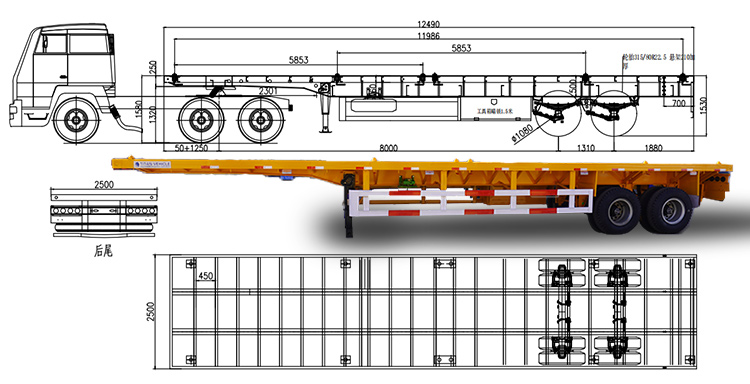

Overall (L*W*H): 12490*2500*1530mm
Material: High strength low alloy Q345 steel
Main beam height: 500 mm
Thickness of main beam: upper: 14mm, lower: 16 mm, middle: 8mm
Floor: 3 mm checkered plate
Side beam: 16# channel steel
Cross beam: 10# channel steel
Axle: 2 TITAN axles
Tire: 12R22.5 Tire,8 pcs
Rim: 900*22.5, 8 pcs
Suspension: Mechanical spring suspension
King Pin: 2" (50#) or 3.5"(90#) high tensile steel bolted type
Landing Leg: 28T landing leg
Container Lock: 8 pcs
Accessories: 1 waterproof tool box with stainless lock, 2 spare tire carrier
Painting: Sandblasted, anti-rust chassis surface with 1 layer of anti-corrosive primer and 2 layers of top coats
Color: Any color will be available
Flatbed trailer are made of low-carbon high-strength alloy steel Q345, which has a higher load-bearing capacity and a service life of more than 10 years.
Reinforced suspension with 70mm center balance pin. The suspension vertical bars are lengthened to prevent the suspension from welding and cracking and increase the strength.
Six channels of channel steel are laid on the cross beams (the bottom beams are laid along the beams) to ensure the stability of the bottom plate.

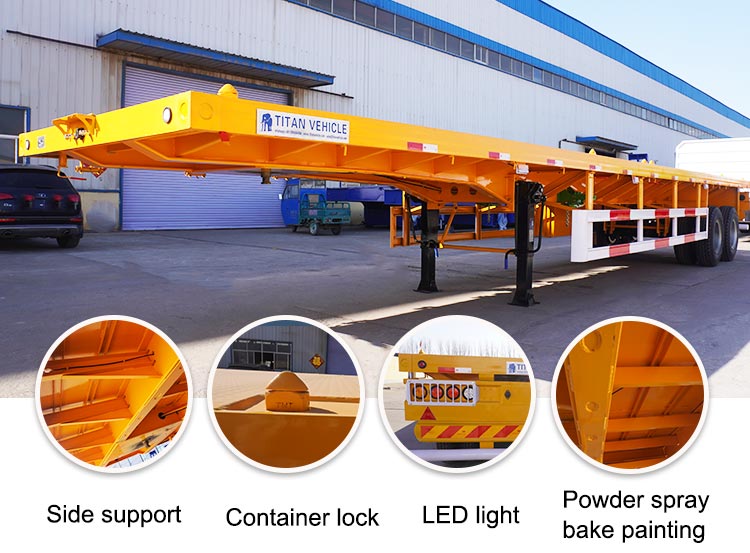

Flatbed trailer for sale adopts powder spray painting, with high sprayability, high color rendering, beautiful color, anti-corrosion
40 ft flatbed trailer use better components, such as 13-ton axles, 16-ton brake pads, 3mm bottom plates, etc. for longer service life.
2 Axle 40 Ft Flatbed Trailer for Sale in Guam Apra

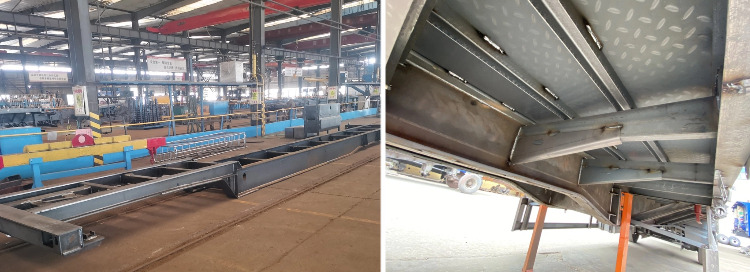

The automatic submerged are welding process welds the main beam. There is no interface between the upper, middle and lower plates of the main beam to ensure the integrity of the main beam and make the flatbed trailer stronger and more durable.
Flatbed trailer use better components, such as 13-ton axles, 16-ton brake pads, 3mm bottom plates, etc. for longer service life.
2 Axle 40 Ft Flatbed Trailer for Sale in Guam Apra

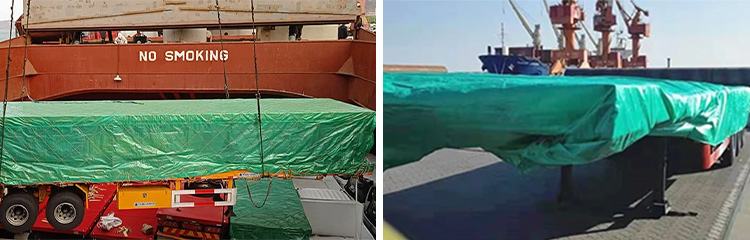

With over ten years of delivery experience, the entire 40 ft flatbed trailer is sprayed with wax before delivery. Once packed, the flatbed trailer was covered with a tarpaulin. Even if the bulk carrier is transported by sea for 1-2 months, it will not have any impact on the trailer and will not rust at all.
2 Axle 40 Ft Flatbed Trailer for Sale in Guam Apra
A Guam customer "I just received a TITAN three axle flatbed trailer. I was in awe of the tarp on the 40 foot flatbed trailer. When receiving a three-axle trailer, cover it with a tarpaulin to prevent seawater erosion. Highly recommended to friends who need a flatbed trailer to buy."
The picture below was taken when customers came to visit.
2 Axle 40 Ft Flatbed Trailer for Sale in Guam Apra
2 Axle 40 Ft Flatbed Trailer for Sale in Guam Apra
This new 2 Axle 40 Ft Flatbed Trailer for Sale in Guam Apra now. To learn more about quality flatbed trailers, please contact us.
