The 40 ft 3 axle flatbed semi trailer has been carefully designed and improved many times to meet the compliance of local roads while providing a high-quality transportation experience. The 40 ft 3 axle flatbed semi trailer is a reliable choice for transporting containers or bulk cargo.
The flatbed semi trailers for sale are road transport vehicles specially designed for transporting standard containers. The 40 ft flatbed semi trailers are widely used in ports, logistics parks and other fields. The flatbed semi trailers for sale can also load bulk cargo for transportation. The flatbed semi trailers have become the core equipment of modern multimodal transport with standardized adaptation, diversified transportation methods, efficient loading and unloading and low operating costs.
40 Ft 3 Axle Flatbed Semi Trailers for Sale in Agana Guam
40 Ft 3 Axle Flatbed Semi Trailers for Sale in Agana Guam
Overall Dimension: 12500mm*2500mm*1590mm
Load Capacity: 60 ton
Floor Plate: 3mm thick pattern floor plate
Side Beam: 160mm high
Axles: 3 axles, 13ton
Tire: 12 units, 12R22.5
Landing Gear: 28 ton
Leaf Spring: 10 layers
Suspension: mechanical suspension
Breaking System: with ABS
Bumper: 4mm thick
Lamp: LED Lamp with anti-theft design
To prevent the flatbed semi trailer from rusting during transportation, TITAN will take waterproof measures before transportation, which is a service that other manufacturers do not have. TITAN always sprays wax and covers all 3 axle flatbed semi trailers with waterproof raincoats before transportation to prevent the flatbed semi trailers for sale from being corroded by sea water and sea breeze during sea transportation.
The flatbed semi trailers for sale frame is made of low-carbon high-strength alloy steel Q355. The solid material enables the 3 axle flatbed semi trailer to maintain good performance under a load of 60 tons, perfectly adapting to the transportation of large quantities of bulk goods.

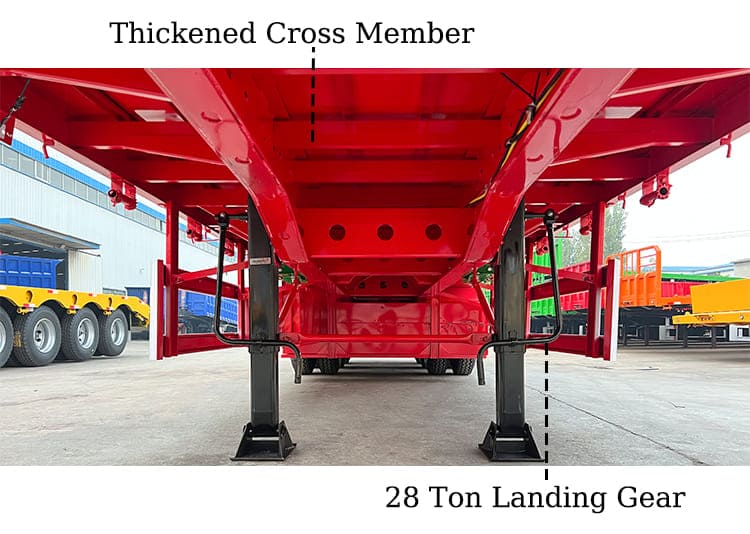

The thickened cross beam forms a vertical structure with the 3 axle flatbed semi trailer beam, forming the basic skeleton of the flatbed semi trailer. The design of diagonal bracing is adopted between the main beam and the cross beam. The equidistant interval can ensure that the pressure on all parts of the flatbed semi trailer is uniform, ensure the flatness of the trailer floor and avoid deformation.
The mechanical suspension of the 3 axle flatbed semi trailer plays a key role in the shock absorption performance of the flatbed semi trailer. The multi-layer design of the leaf spring accessories, combined with the 70mm center balance pin, forms a stable buffer system with the reinforced mechanical suspension. The suspension made of high-strength steel has improved hardness, which can effectively protect the transported goods and extend the service life of the tires.
The axle of the 40 ft flatbed semi trailer bears the important bearing pressure. Compared with ordinary axles, TITAN axles can better distribute heavy loads to the frame and tires, avoiding tire blowouts or frame deformation caused by excessive load in one place, which affects transportation safety.

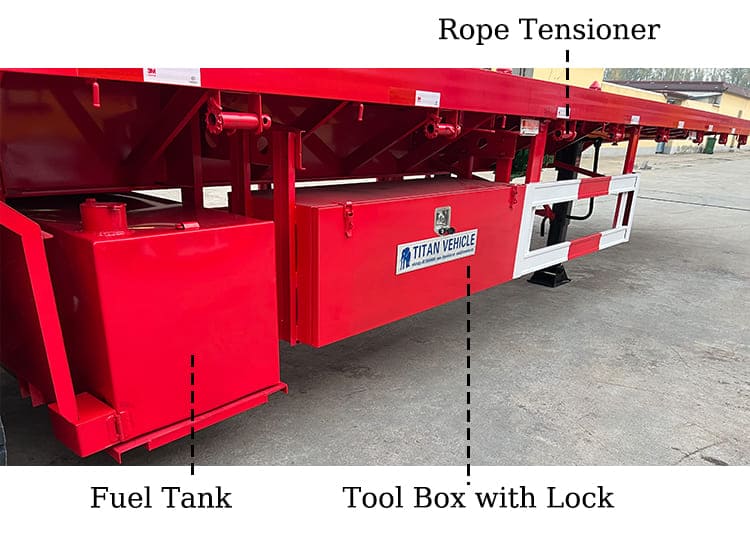

Flatbed semi trailers for sale are usually used for medium and long-distance logistics. The fuel tank is designed to carry a large capacity of fuel, which can reduce the time for refueling. The fuel tank is designed to span the entire bottom of the flatbed semi trailers for sale frame, which can balance the center of gravity of the container after loading and reduce the risk of rollover. The bottom of the fuel tank is reinforced that prevent damage to the fuel tank by unpaved roads.

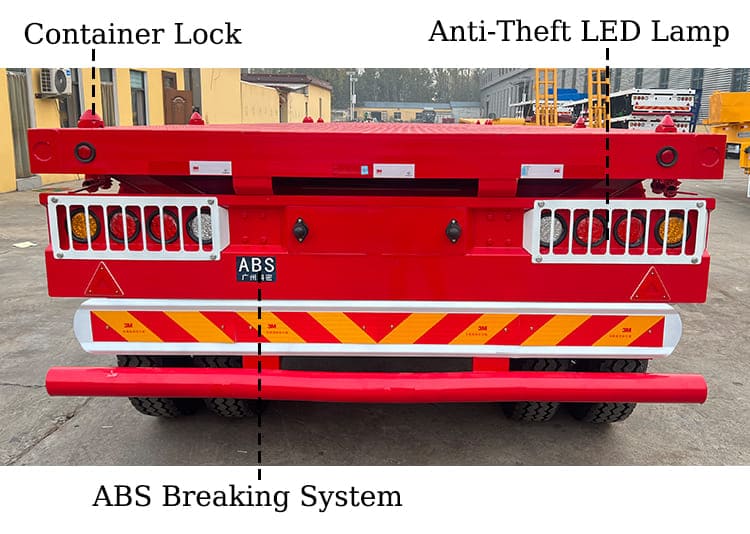

The 3 axle flatbed semi trailer is equipped with 12 container locks, which are fixing tools for container transportation and can ensure the stability and safety of containers during transportation. The flatbed semi trailer container locks are fully matched with the size of standardized containers and are suitable for fixing containers of 20 feet and 40 feet.
The traction plate adopts an integrated structural design, and a whole piece of steel plate is selected as the material to ensure the reliability of traction. The 12mm thick traction plate not only maintains high structural rigidity, but also transmits traction force smoothly to all parts of the frame.
Combined with the 40 ft flatbed semi trailer multiple buffer designs, it can not only reduce the impact of sudden collisions on the transported goods, but also prevent mechanical separation in extreme cases.
